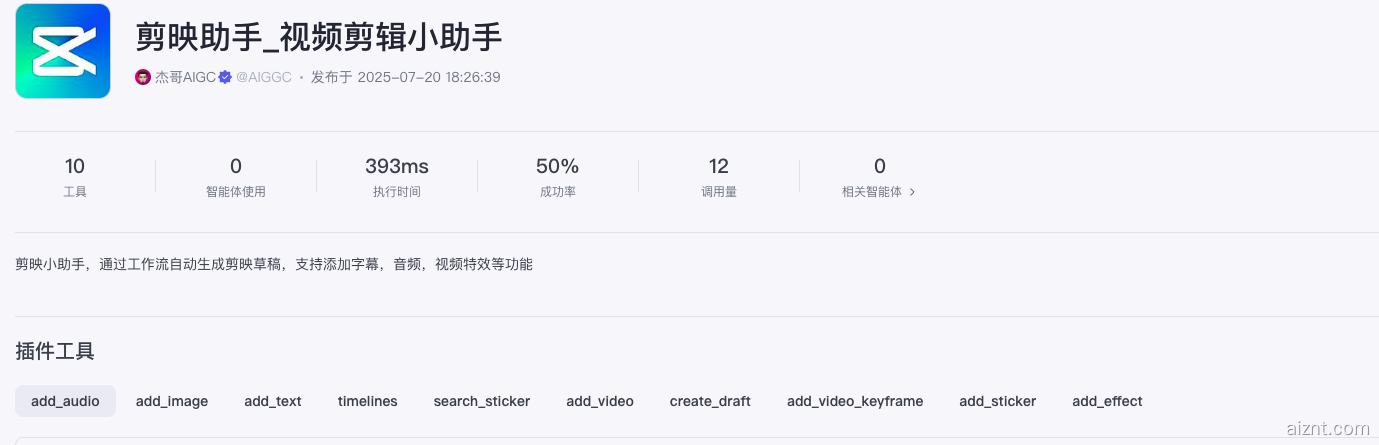

剪映助手是一款功能强大的工具，专门用于通过工作流生成和编辑剪映草稿文件。它不仅支持添加图片，还能够处理音频、视频、字幕等多种素材，使用户能够轻松设置特效、转场和字幕样式等。通过使用剪映助手，用户可以高效地管理剪映草稿，确保素材的完整性和准确性，实现通过AI大模型编排自动化处理视频的需求。

详细每个节点使用说明：

入门教程：

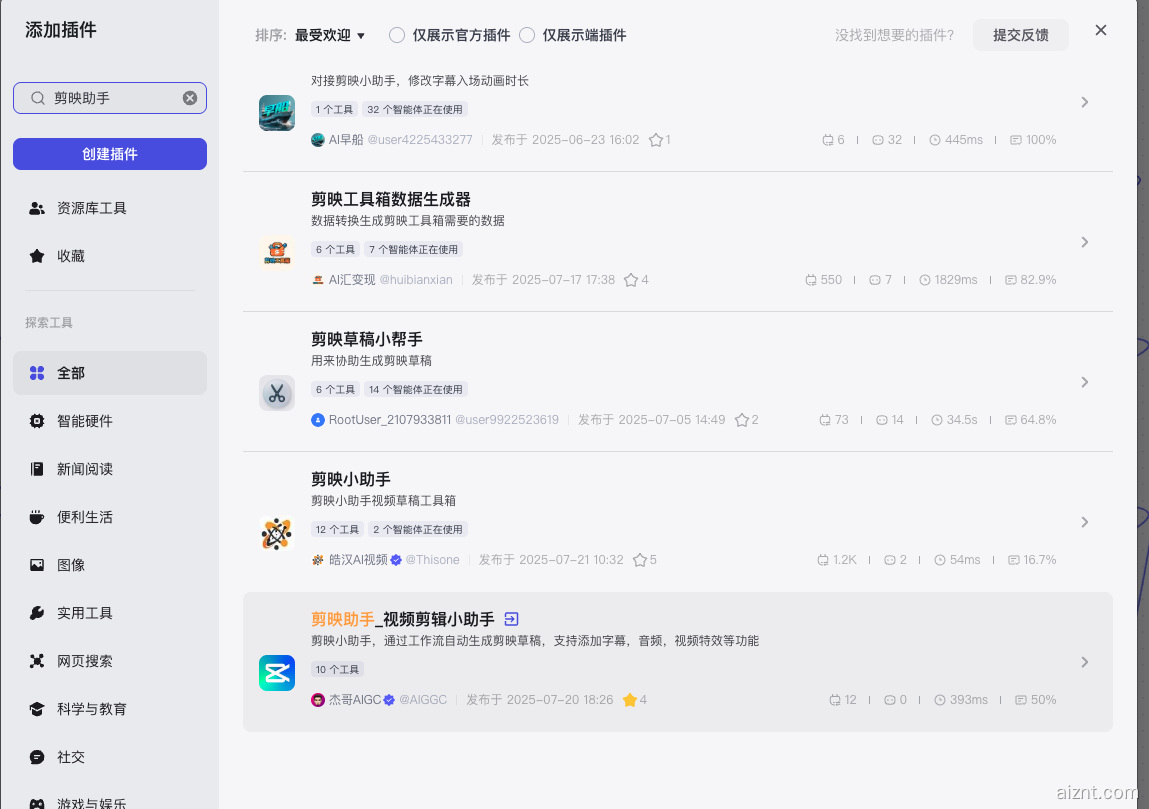

1.扣子工作流中搜索

在工作流中添加节点，搜索【剪映助手】找到蓝色图标的剪映助手，可以收藏方便下次使用。

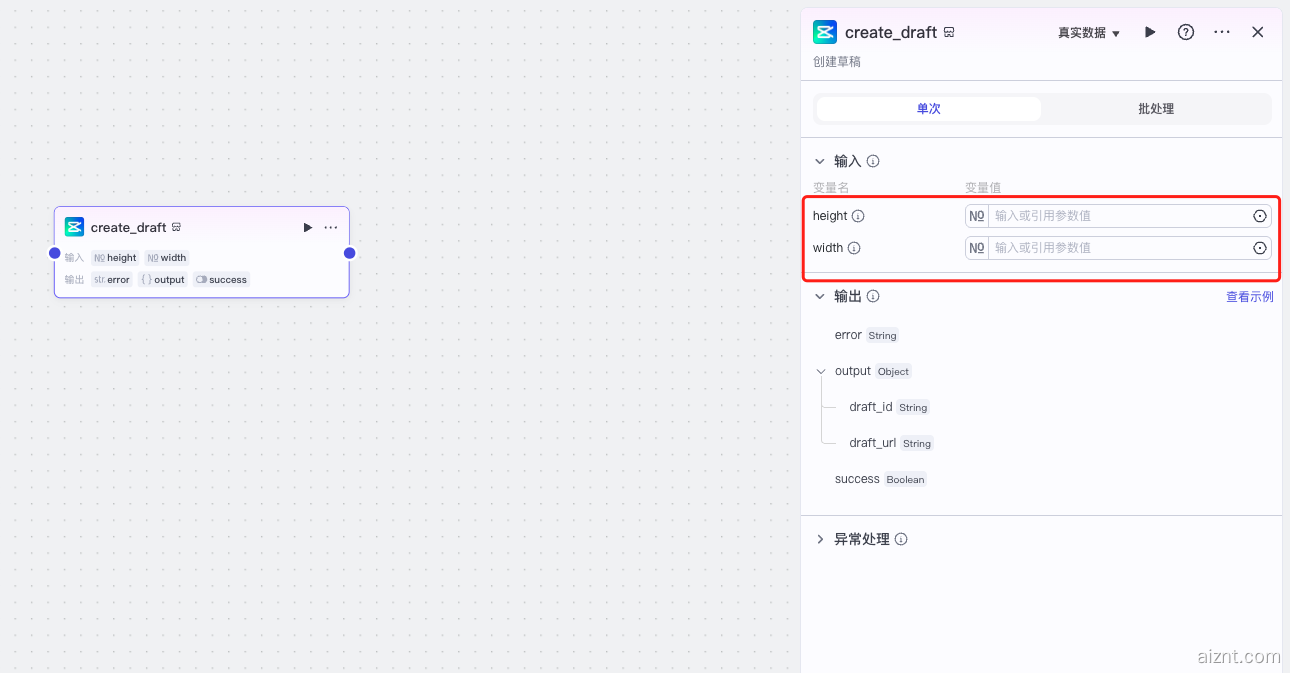

2.插入创建草稿节点

方便后续管理草稿内容，建议第一次先创建草稿节点，生成对应的Draft ID方便后续修改草稿使用。

视频的宽度和高度建议填写，默认为1080 x 1920

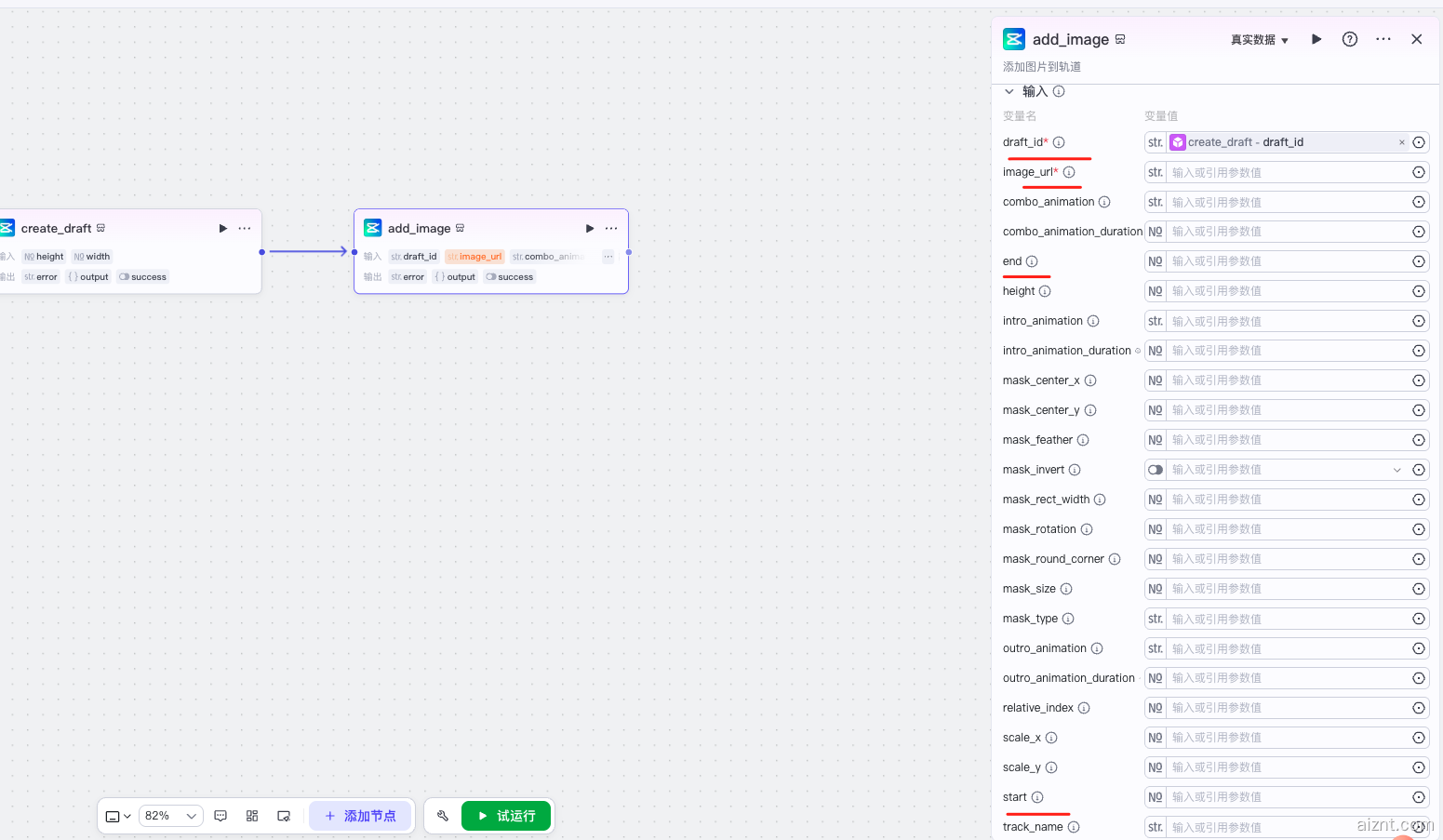

3.添加图片节点

add_image节点用于添加图片到剪映草稿文件，其中必填字段 draft_id为需要修改的草稿文件ID，image_url地址为添加的图片素材，建议设置start 和end参数，用于规定图片在当前轨道时间长度，如果不填写按默认0-3秒放置。

4.导出生成草稿文件

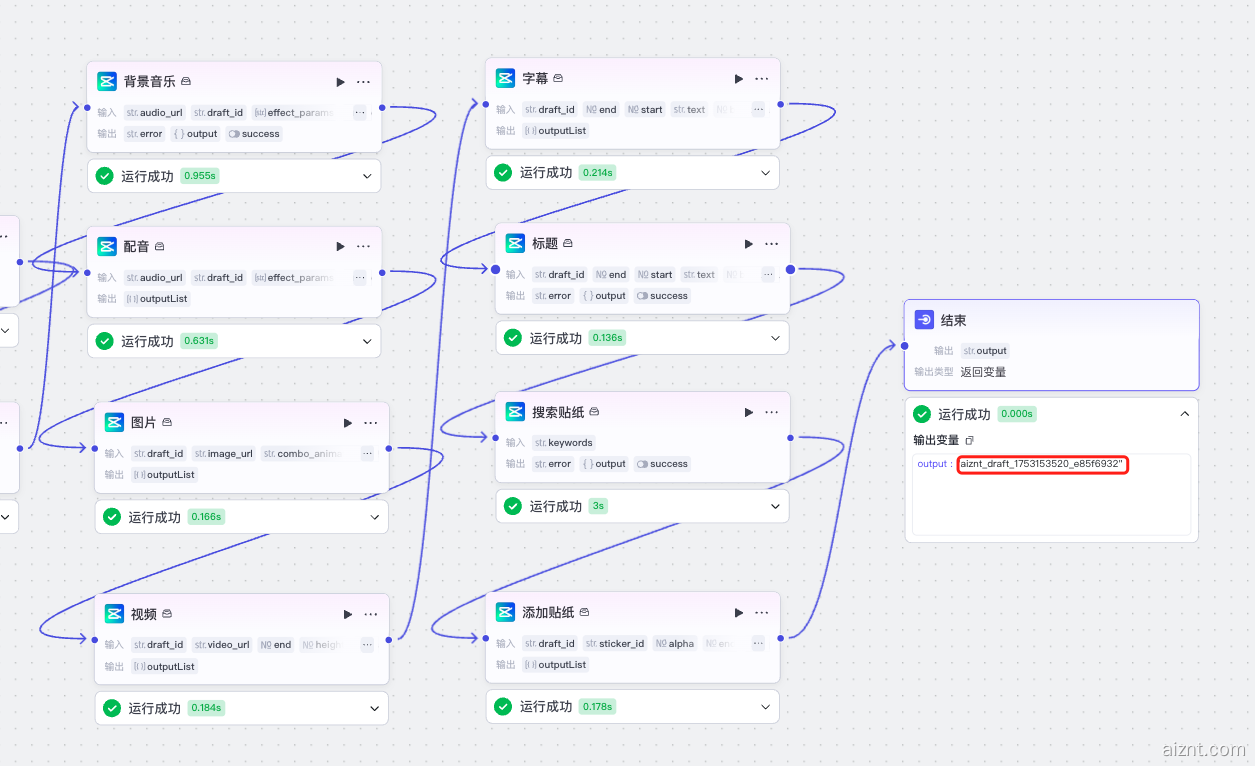

都添加后运行生成草稿ID，用于后续下载草稿或者云渲染，复制draft_id

5.下载剪映助手生成草稿文件

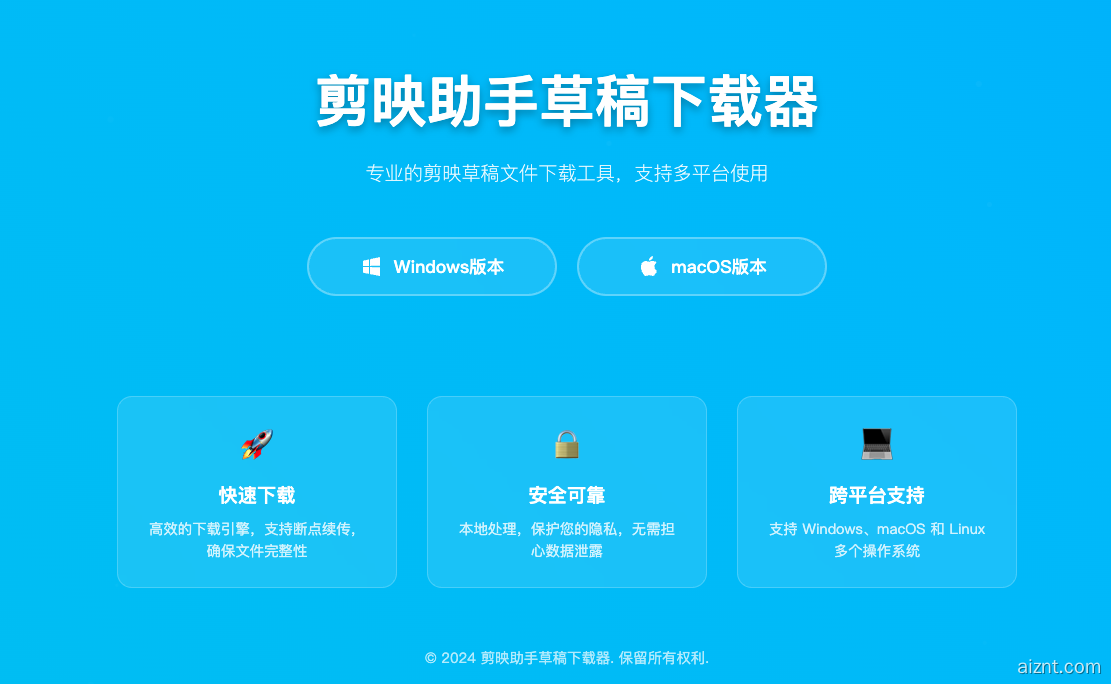

前往：https://jy.aiznt.com/，下载剪映助手，根据平台选择不同的版本下载，可能遇到安全软件提醒，请都点击允许运行。

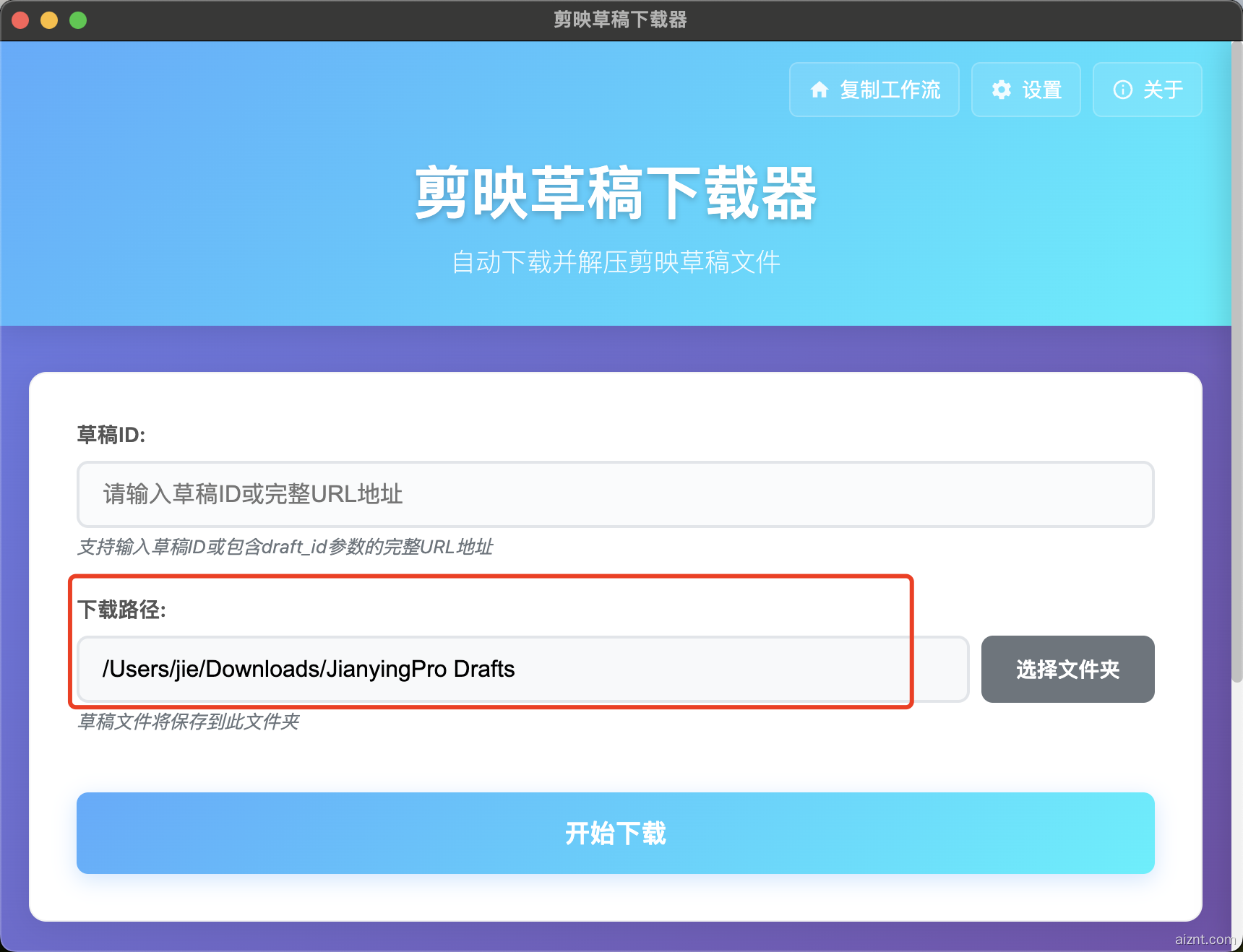

安装后打开剪映助手，设置剪映草稿文件位置

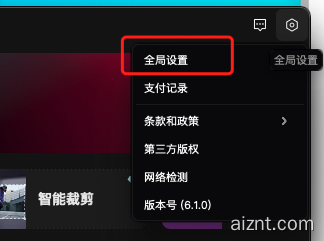

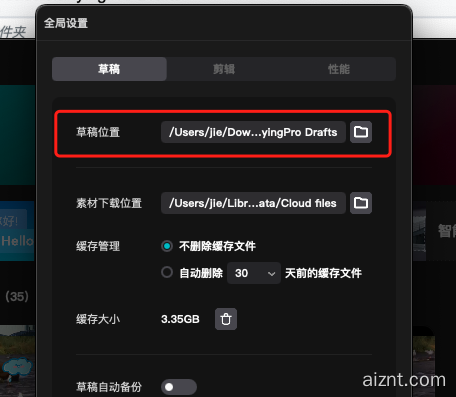

剪映草稿位置查询方法，打开剪映专业版，点击右上角设置 – 全局设置，草稿位置就是当前剪映的草稿所在位置，请将剪映草稿位置，填写只下载路劲剪映草稿位置处，如果地址填写不正确可能会导致素材丢失。

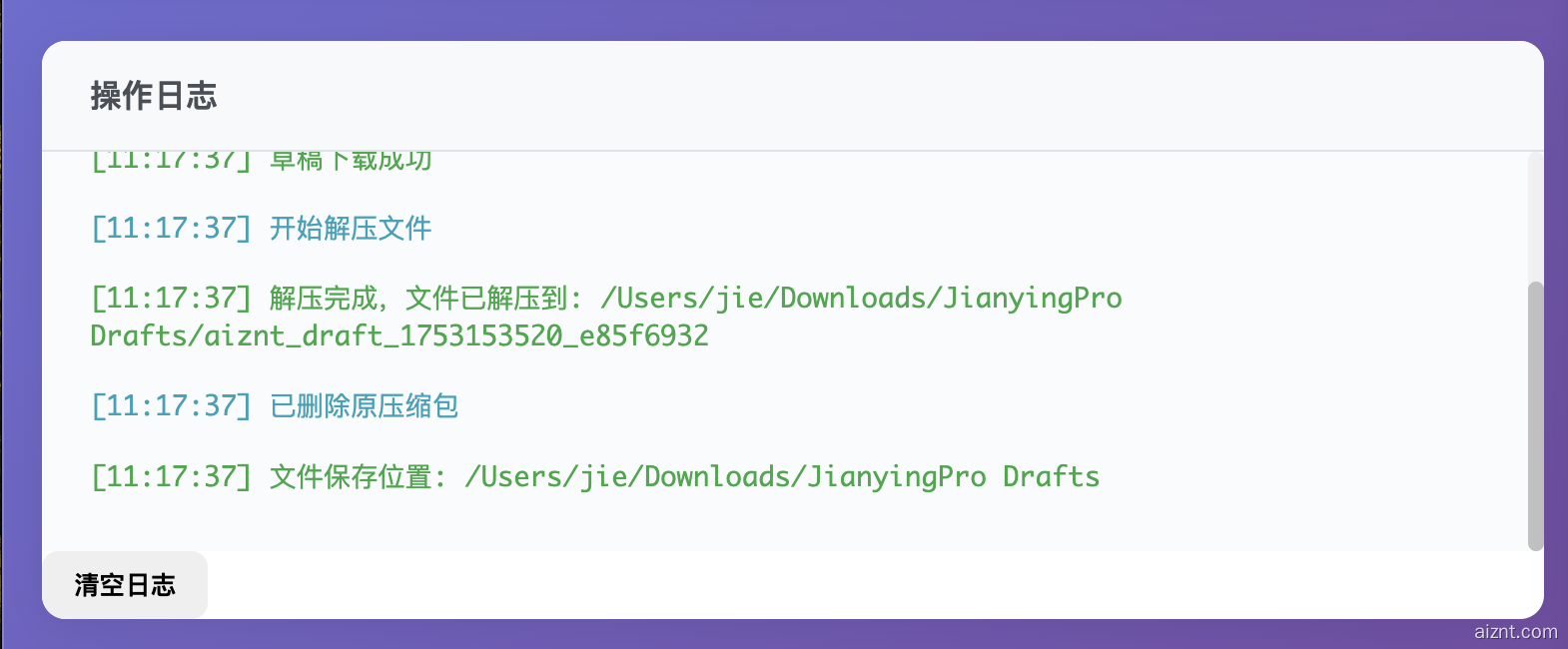

点击【开始下载】，提示下载成功后可以打开剪映查看

6.剪映草稿导出视频

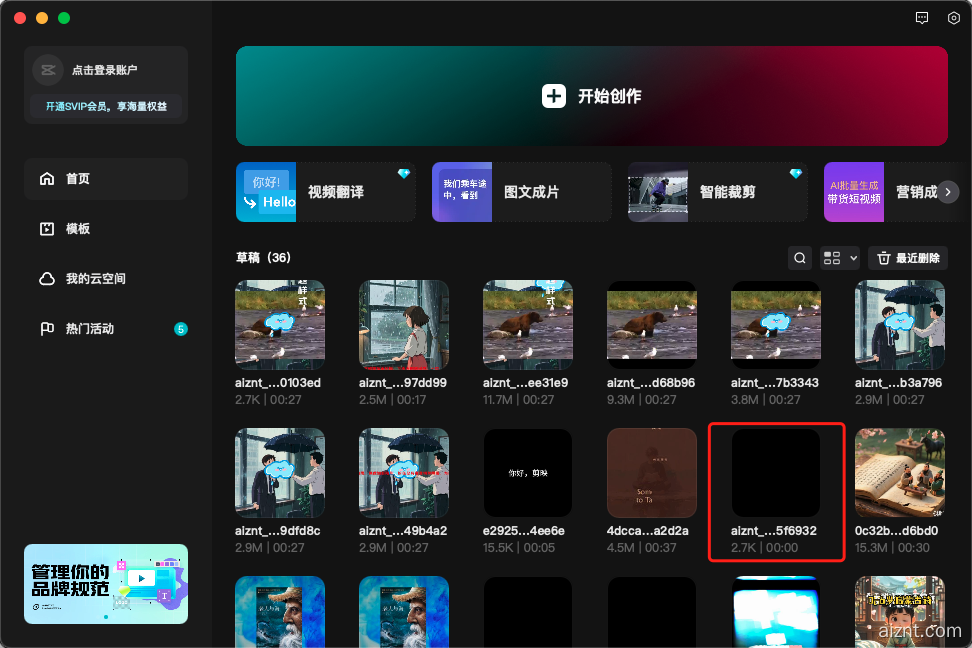

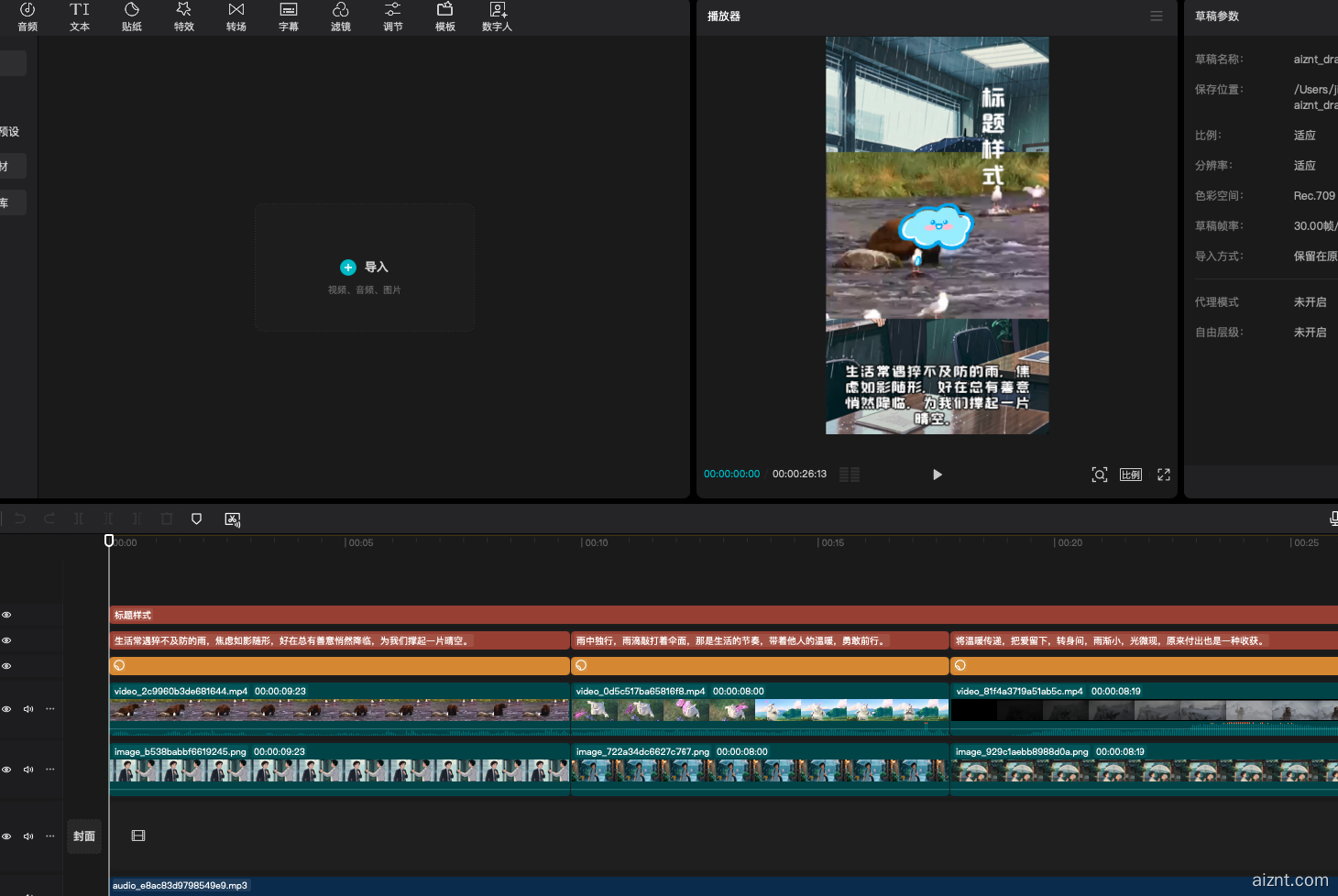

打开剪映找到刚刚下载好的草稿文件，可以查看前缀为aiznt，后缀为复制的地址后几位，黑色正常点击打开后会正常显示。

这个就是刚刚生成好的剪映工程文件，可以直接导出视频文件，如果有不满意也支持在剪映中二次修改。

7.附上示例工作流源码

可以在空白工作流直接复制粘贴以下代码，查看demo工作流如何运行，更多参数设置请查看详细的剪映助手帮助文档。

{"type":"coze-workflow-clipboard-data","source":{"workflowId":"7529077370743111695","flowMode":0,"spaceId":"7506483678047174696","isDouyin":false,"host":"www.coze.cn"},"json":{"nodes":[{"id":"190910","type":"4","meta":{"position":{"x":526.2422829880047,"y":203.28009328226085}},"data":{"nodeMeta":{"description":"创建草稿","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:create_draft","title":"创建草稿"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528374384336158756","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"create_draft","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"height","input":{"type":"float","value":{"type":"literal","content":1920,"rawMeta":{"type":4}}}},{"name":"width","input":{"type":"float","value":{"type":"literal","content":1080,"rawMeta":{"type":4}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"draft_id","required":false},{"type":"string","name":"draft_url","required":false}],"required":false},{"type":"boolean","name":"success","required":false}]},"_temp":{"bounds":{"x":346.2422829880047,"y":203.28009328226085,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=FCH8lWpo4iMoBLKc2lYGuNV%2BI18%3D","apiName":"create_draft","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"视频高度（像素）","input":{},"name":"height","required":false,"type":"float"},{"description":"视频宽度（像素）","input":{},"name":"width","required":false,"type":"float"}],"outputs":[{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_id","required":false,"type":"string"},{"input":{},"name":"draft_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"创建草稿","title":"create_draft","mainColor":"#CA61FF"}}},{"id":"108688","type":"4","meta":{"position":{"x":967.0327617849123,"y":-11.504082113812473}},"data":{"nodeMeta":{"description":"添加音频到轨道","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:add_audio","title":"配音"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528607546471415818","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"add_audio","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"batch":{"batchEnable":true,"batchSize":100,"concurrentSize":1,"inputLists":[{"name":"audio","input":{"type":"list","schema":{"type":"string"},"value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"audio"},"rawMeta":{"type":99}}}},{"name":"time","input":{"type":"list","schema":{"type":"object","schema":[{"type":"float","name":"start","required":false},{"type":"float","name":"duration","required":false},{"type":"float","name":"end","required":false}]},"value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"timelines"},"rawMeta":{"type":103}}}}]},"inputParameters":[{"name":"audio_url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"108688","name":"audio"},"rawMeta":{"type":1}}}},{"name":"draft_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"190910","name":"output.draft_id"},"rawMeta":{"type":1}}}},{"name":"end","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"108688","name":"time.duration"},"rawMeta":{"type":4}}}},{"name":"target_start","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"108688","name":"time.start"},"rawMeta":{"type":4}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"list","name":"outputList","schema":{"type":"object","schema":[{"type":"boolean","name":"success","required":false},{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"draft_id","required":false},{"type":"string","name":"draft_url","required":false}],"required":false}]}}]},"_temp":{"bounds":{"x":787.0327617849123,"y":-11.504082113812473,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=FCH8lWpo4iMoBLKc2lYGuNV%2BI18%3D","apiName":"add_audio","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"音量大小，默认1.0","input":{},"name":"volume","required":false,"type":"float"},{"description":"音频资源的URL地址","input":{},"name":"audio_url","required":true,"type":"string"},{"description":"草稿ID（用于指定特定草稿）","input":{},"name":"draft_id","required":true,"type":"string"},{"description":"音效类型（目前支持的音效：add_audio）","input":{},"name":"effect_type","required":false,"type":"string"},{"description":"音频结束时间（秒，默认不限制）","input":{},"name":"end","required":false,"type":"float"},{"description":"视频高度（像素）默认1920","input":{},"name":"height","required":false,"type":"float"},{"description":"音频播放速度（1.0为原速）默认1.0","input":{},"name":"speed","required":false,"type":"float"},{"description":"轨道名称（用于多音频混合）默认audio_main","input":{},"name":"track_name","required":false,"type":"string"},{"description":"音效参数（参数列表，视具体音效而定，例如[50.35]）","input":{},"name":"effect_params","required":false,"schema":{"assistType":0,"type":"string"},"type":"list"},{"description":"音频开始时间（秒）默认0","input":{},"name":"start","required":false,"type":"float"},{"description":"目标开始时间（秒），默认0","input":{},"name":"target_start","required":false,"type":"float"},{"description":"视频宽度（像素）默认1080","input":{},"name":"width","required":false,"type":"float"}],"outputs":[{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_id","required":false,"type":"string"},{"input":{},"name":"draft_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"添加音频到轨道","title":"add_audio","mainColor":"#CA61FF"}}},{"id":"198094","type":"4","meta":{"position":{"x":975.786276203306,"y":203.28009328226088}},"data":{"nodeMeta":{"description":"添加图片到轨道","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:add_image","title":"图片"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528380841710387254","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"add_image","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"batch":{"batchEnable":true,"batchSize":100,"concurrentSize":1,"inputLists":[{"name":"img","input":{"type":"list","schema":{"type":"string"},"value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"img"},"rawMeta":{"type":99}}}},{"name":"time","input":{"type":"list","schema":{"type":"object","schema":[{"type":"float","name":"start","required":false},{"type":"float","name":"duration","required":false},{"type":"float","name":"end","required":false}]},"value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"timelines"},"rawMeta":{"type":103}}}}]},"inputParameters":[{"name":"draft_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"190910","name":"output.draft_id"},"rawMeta":{"type":1}}}},{"name":"image_url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"198094","name":"img"},"rawMeta":{"type":1}}}},{"name":"end","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"198094","name":"time.end"},"rawMeta":{"type":4}}}},{"name":"start","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"198094","name":"time.start"},"rawMeta":{"type":4}}}},{"name":"track_name","input":{"type":"string","value":{"type":"literal","content":"img","rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"list","name":"outputList","schema":{"type":"object","schema":[{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"draft_id","required":false},{"type":"string","name":"draft_url","required":false}],"required":false},{"type":"boolean","name":"success","required":false}]}}]},"_temp":{"bounds":{"x":795.786276203306,"y":203.28009328226088,"width":360,"height":112},"externalData":{"icon":"https://lf3-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=3%2BTRumFIOmRvWFefKUjY96sDJAo%3D","apiName":"add_image","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"入场动画持续时间（秒）默认0.5","input":{},"name":"intro_animation_duration","required":false,"type":"float"},{"description":"蒙版类型，支持：<br>\"线性\"、\"镜面\"、\"圆形\"、\"矩形\"、\"爱心\"、\"星形\"","input":{},"name":"mask_type","required":false,"type":"string"},{"description":"图片结束显示时间（秒），默认3","input":{},"name":"end","required":false,"type":"float"},{"description":"是否反转蒙版（true 显示蒙版外区域，false 显示蒙版内区域）","input":{},"name":"mask_invert","required":false,"type":"boolean"},{"description":"矩形蒙版宽度（仅当 mask_type=\"矩形\" 时有效，占素材宽度的比例）","input":{},"name":"mask_rect_width","required":false,"type":"float"},{"description":"蒙版中心点 X 坐标（像素单位，以素材左上角为原点","input":{},"name":"mask_center_x","required":false,"type":"float"},{"description":"蒙版中心点 Y 坐标（像素单位，以素材左上角为原点）","input":{},"name":"mask_center_y","required":false,"type":"float"},{"description":"出场动画类型（支持的出场动画","input":{},"name":"outro_animation","required":false,"type":"string"},{"description":"转场名称，支持的转场特效：","input":{},"name":"transition","required":false,"type":"string"},{"description":"组合动画持续时间（秒）默认0.5","input":{},"name":"combo_animation_duration","required":false,"type":"float"},{"description":"图片高度（像素），默认1920","input":{},"name":"height","required":false,"type":"float"},{"description":"矩形蒙版圆角值（仅当 mask_type=\"矩形\" 时有效，范围 0~100），默认0","input":{},"name":"mask_round_corner","required":false,"type":"float"},{"description":"转场持续时间，默认0.5","input":{},"name":"transition_duration","required":false,"type":"float"},{"description":"组合动画类型（支持的组合动画：","input":{},"name":"combo_animation","required":false,"type":"string"},{"description":"入场动画类型（支持的入场动画：）","input":{},"name":"intro_animation","required":false,"type":"string"},{"description":"X轴缩放比例，默认1","input":{},"name":"scale_x","required":false,"type":"float"},{"description":"Y轴平移量（1表示一个画幅高度，正数向下移动），默认0","input":{},"name":"transform_y","required":false,"type":"float"},{"description":"草稿ID","input":{},"name":"draft_id","required":true,"type":"string"},{"description":"图片资源的URL地址","input":{},"name":"image_url","required":true,"type":"string"},{"description":"出场动画持续时间（秒）默认0.5","input":{},"name":"outro_animation_duration","required":false,"type":"float"},{"description":"Y轴缩放比例，默认1","input":{},"name":"scale_y","required":false,"type":"float"},{"description":"蒙版羽化值（范围 0~100，值越大边缘越模糊），默认0","input":{},"name":"mask_feather","required":false,"type":"float"},{"description":"蒙版顺时针旋转角度（单位：度，如 45 表示旋转45度）默认0","input":{},"name":"mask_rotation","required":false,"type":"float"},{"description":"蒙版主要尺寸（占素材高度的比例，如 0.5 表示为素材高度的50%），默认0.5","input":{},"name":"mask_size","required":false,"type":"float"},{"description":"图片开始显示时间（秒），默认0","input":{},"name":"start","required":false,"type":"float"},{"description":"轨道名称（默认主轨道），默认主轨道main","input":{},"name":"track_name","required":false,"type":"string"},{"description":"X轴平移量（1表示一个画幅宽度，正数向右移动），默认0","input":{},"name":"transform_x","required":false,"type":"float"},{"description":"相同类型轨道的相对位置，越大越靠前","input":{},"name":"relative_index","required":false,"type":"float"},{"description":"图片宽度（像素），默认1080","input":{},"name":"width","required":false,"type":"float"}],"outputs":[{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_id","required":false,"type":"string"},{"input":{},"name":"draft_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"添加图片到轨道","title":"add_image","mainColor":"#CA61FF"}}},{"id":"180359","type":"4","meta":{"position":{"x":1464.3076855206757,"y":189.5895577063855}},"data":{"nodeMeta":{"description":"根据关键词搜索贴纸资源，支持中文/英文关键词匹配，返回贴纸列表（含URL、尺寸等信息）。","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:search_sticker","title":"搜索贴纸"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528629899788091443","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"search_sticker","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"keywords","input":{"type":"string","value":{"type":"literal","content":"下雨","rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"message","required":false},{"type":"list","name":"data","schema":{"type":"object","schema":[{"type":"object","name":"sticker","schema":[{"type":"object","name":"large_image","schema":[{"type":"string","name":"image_url","required":false}],"required":false},{"type":"string","name":"preview_cover","required":false},{"type":"object","name":"sticker_package","schema":[{"type":"integer","name":"height_per_frame","required":false},{"type":"integer","name":"size","required":false},{"type":"integer","name":"width_per_frame","required":false}],"required":false},{"type":"integer","name":"sticker_type","required":false},{"type":"string","name":"track_thumbnail","required":false}],"required":false},{"type":"string","name":"sticker_id","required":false},{"type":"string","name":"title","required":false}]},"required":false}],"required":false},{"type":"boolean","name":"success","required":false}]},"_temp":{"bounds":{"x":1284.3076855206757,"y":189.5895577063855,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=FCH8lWpo4iMoBLKc2lYGuNV%2BI18%3D","apiName":"search_sticker","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"搜索关键词（支持中文、英文）","input":{},"name":"keywords","required":true,"type":"string"}],"outputs":[{"input":{},"name":"success","required":false,"type":"boolean"},{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"data","required":false,"schema":{"schema":[{"input":{},"name":"sticker","required":false,"schema":[{"input":{},"name":"large_image","required":false,"schema":[{"input":{},"name":"image_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"preview_cover","required":false,"type":"string"},{"input":{},"name":"sticker_package","required":false,"schema":[{"input":{},"name":"height_per_frame","required":false,"type":"integer"},{"input":{},"name":"size","required":false,"type":"integer"},{"input":{},"name":"width_per_frame","required":false,"type":"integer"}],"type":"object"},{"input":{},"name":"sticker_type","required":false,"type":"integer"},{"input":{},"name":"track_thumbnail","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"sticker_id","required":false,"type":"string"},{"input":{},"name":"title","required":false,"type":"string"}],"type":"object"},"type":"list"},{"input":{},"name":"message","required":false,"type":"string"}],"type":"object"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"根据关键词搜索贴纸资源，支持中文/英文关键词匹配，返回贴纸列表（含URL、尺寸等信息）。","title":"search_sticker","mainColor":"#CA61FF"}}},{"id":"137816","type":"4","meta":{"position":{"x":1452.4136147063855,"y":434.20428070922344}},"data":{"nodeMeta":{"description":"向指定草稿添加贴纸资源，并配置贴纸的显示参数（位置、大小、透明度等）。","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:add_sticker","title":"添加贴纸"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528629981824598025","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"add_sticker","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"batch":{"batchEnable":true,"batchSize":100,"concurrentSize":1,"inputLists":[{"name":"item1","input":{"type":"list","schema":{"type":"object","schema":[{"type":"object","name":"sticker","schema":[{"type":"object","name":"large_image","schema":[{"type":"string","name":"image_url","required":false}],"required":false},{"type":"string","name":"preview_cover","required":false},{"type":"object","name":"sticker_package","schema":[{"type":"integer","name":"height_per_frame","required":false},{"type":"integer","name":"size","required":false},{"type":"integer","name":"width_per_frame","required":false}],"required":false},{"type":"integer","name":"sticker_type","required":false},{"type":"string","name":"track_thumbnail","required":false}],"required":false},{"type":"string","name":"sticker_id","required":false},{"type":"string","name":"title","required":false}]},"value":{"type":"ref","content":{"source":"block-output","blockID":"180359","name":"output.data"},"rawMeta":{"type":103}}}},{"name":"timelines","input":{"type":"list","schema":{"type":"object","schema":[{"type":"float","name":"start","required":false},{"type":"float","name":"duration","required":false},{"type":"float","name":"end","required":false}]},"value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"timelines"},"rawMeta":{"type":103}}}}]},"inputParameters":[{"name":"draft_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"190910","name":"output.draft_id"},"rawMeta":{"type":1}}}},{"name":"sticker_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"137816","name":"item1.sticker_id"},"rawMeta":{"type":1}}}},{"name":"end","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"137816","name":"timelines.end"},"rawMeta":{"type":4}}}},{"name":"start","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"137816","name":"timelines.start"},"rawMeta":{"type":4}}}},{"name":"transform_x","input":{"type":"float","value":{"type":"literal","content":0,"rawMeta":{"type":4}}}},{"name":"transform_y","input":{"type":"float","value":{"type":"literal","content":0,"rawMeta":{"type":4}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"list","name":"outputList","schema":{"type":"object","schema":[{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"draft_url","required":false},{"type":"string","name":"draft_id","required":false}],"required":false},{"type":"boolean","name":"success","required":false}]}}]},"_temp":{"bounds":{"x":1272.4136147063855,"y":434.20428070922344,"width":360,"height":112},"externalData":{"icon":"https://lf3-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=3%2BTRumFIOmRvWFefKUjY96sDJAo%3D","apiName":"add_sticker","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"X轴平移量，默认0","input":{},"name":"transform_x","required":false,"type":"float"},{"description":"是否垂直翻转，默认false","input":{},"name":"flip_vertical","required":false,"type":"boolean"},{"description":"Y轴缩放比例，默认1.0","input":{},"name":"scale_y","required":false,"type":"float"},{"description":"贴纸资源ID","input":{},"name":"sticker_id","required":true,"type":"string"},{"description":"轨道名称，默认\"sticker_main\"","input":{},"name":"track_name","required":false,"type":"string"},{"description":"旋转角度，默认0.0","input":{},"name":"rotation","required":false,"type":"float"},{"description":"X轴缩放比例，默认1.0","input":{},"name":"scale_x","required":false,"type":"float"},{"description":"贴纸显示的起始时间（秒），默认0","input":{},"name":"start","required":false,"type":"float"},{"description":"贴纸显示的结束时间（秒），默认5.0","input":{},"name":"end","required":false,"type":"float"},{"description":"视频高度，默认1920","input":{},"name":"height","required":false,"type":"float"},{"description":"轨道内相对索引，默认0","input":{},"name":"relative_index","required":false,"type":"float"},{"description":"视频宽度，默认1080","input":{},"name":"width","required":false,"type":"float"},{"description":"透明度，默认1.0","input":{},"name":"alpha","required":false,"type":"float"},{"description":"目标草稿ID","input":{},"name":"draft_id","required":true,"type":"string"},{"description":"是否水平翻转，默认false","input":{},"name":"flip_horizontal","required":false,"type":"boolean"},{"description":"Y轴平移量，默认0","input":{},"name":"transform_y","required":false,"type":"float"}],"outputs":[{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_id","required":false,"type":"string"},{"input":{},"name":"draft_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"向指定草稿添加贴纸资源，并配置贴纸的显示参数（位置、大小、透明度等）。","title":"add_sticker","mainColor":"#CA61FF"}}},{"id":"144495","type":"4","meta":{"position":{"x":1452.4136147063855,"y":-216.2689380464987}},"data":{"nodeMeta":{"description":"添加字幕到轨道","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:add_text","title":"字幕"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528614856367554569","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"add_text","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"batch":{"batchEnable":true,"batchSize":100,"concurrentSize":1,"inputLists":[{"name":"text","input":{"type":"list","schema":{"type":"string"},"value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"text"},"rawMeta":{"type":99}}}},{"name":"timelines","input":{"type":"list","schema":{"type":"object","schema":[{"type":"float","name":"start","required":false},{"type":"float","name":"duration","required":false},{"type":"float","name":"end","required":false}]},"value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"timelines"},"rawMeta":{"type":103}}}}]},"inputParameters":[{"name":"draft_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"190910","name":"output.draft_id"},"rawMeta":{"type":1}}}},{"name":"end","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"144495","name":"timelines.end"},"rawMeta":{"type":4}}}},{"name":"start","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"144495","name":"timelines.start"},"rawMeta":{"type":4}}}},{"name":"text","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"144495","name":"text"},"rawMeta":{"type":1}}}},{"name":"border_color","input":{"type":"string","value":{"type":"literal","content":"#000000","rawMeta":{"type":1}}}},{"name":"border_width","input":{"type":"float","value":{"type":"literal","content":40,"rawMeta":{"type":4}}}},{"name":"fixed_width","input":{"type":"float","value":{"type":"literal","content":0.6,"rawMeta":{"type":4}}}},{"name":"font_color","input":{"type":"string","value":{"type":"literal","content":"#ffffff","rawMeta":{"type":1}}}},{"name":"font_size","input":{"type":"float","value":{"type":"literal","content":12,"rawMeta":{"type":4}}}},{"name":"intro_animation","input":{"type":"string","value":{"type":"literal","content":"打字光标","rawMeta":{"type":1}}}},{"name":"intro_duration","input":{"type":"float","value":{"type":"literal","content":8,"rawMeta":{"type":4}}}},{"name":"transform_y","input":{"type":"float","value":{"type":"literal","content":-0.8,"rawMeta":{"type":4}}}},{"name":"width","input":{"type":"float","value":{"type":"literal","content":1000,"rawMeta":{"type":4}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"list","name":"outputList","schema":{"type":"object","schema":[{"type":"object","name":"output","schema":[{"type":"string","name":"draft_id","required":false},{"type":"string","name":"draft_url","required":false}],"required":false},{"type":"boolean","name":"success","required":false},{"type":"string","name":"error","required":false}]}}]},"_temp":{"bounds":{"x":1272.4136147063855,"y":-216.2689380464987,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=FCH8lWpo4iMoBLKc2lYGuNV%2BI18%3D","apiName":"add_text","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"描边颜色（HEX格式）","input":{},"name":"border_color","required":false,"type":"string"},{"description":"轨道名称","input":{},"name":"track_name","required":false,"type":"string"},{"description":"视频高度","input":{},"name":"height","required":false,"type":"float"},{"description":"入场动画持续时间（秒）","input":{},"name":"intro_duration","required":false,"type":"float"},{"description":"Y轴位置（以视频中心为原点，对应视频高度）","input":{},"name":"transform_y","required":false,"type":"float"},{"description":"是否竖排显示，默认否","input":{},"name":"vertical","required":false,"type":"boolean"},{"description":"背景颜色（HEX格式）","input":{},"name":"background_color","required":false,"type":"string"},{"description":"描边透明度（范围0.0-1.0），默认1.0","input":{},"name":"border_alpha","required":false,"type":"float"},{"description":"字体大小","input":{},"name":"font_size","required":false,"type":"float"},{"description":"支持的出场动画：add_text","input":{},"name":"outro_animation","required":false,"type":"string"},{"description":"花字效果ID","input":{},"name":"effect_effect_id","required":false,"type":"string"},{"description":"支持的入场动画：add_text","input":{},"name":"intro_animation","required":false,"type":"string"},{"description":"出场动画持续时间（秒）","input":{},"name":"outro_duration","required":false,"type":"float"},{"description":"气泡资源ID","input":{},"name":"bubble_resource_id","required":false,"type":"string"},{"description":"草稿ID","input":{},"name":"draft_id","required":true,"type":"string"},{"description":"字体颜色（HEX格式，如：#FF0000）","input":{},"name":"font_color","required":false,"type":"string"},{"description":"多样式文本配置，数组内为样式区间对象","input":{},"name":"text_styles","required":false,"schema":{"assistType":0,"type":"string"},"type":"list"},{"description":"X轴位置（以视频中心为原点，对应视频宽度）","input":{},"name":"transform_x","required":false,"type":"float"},{"description":"文本结束时间（秒）","input":{},"name":"end","required":true,"type":"float"},{"description":"背景透明度（范围0.0-1.0）","input":{},"name":"background_alpha","required":false,"type":"float"},{"description":"描边宽度","input":{},"name":"border_width","required":false,"type":"float"},{"description":"文字高度限制，-1表示不限制，1表示1个视频高度","input":{},"name":"fixed_height","required":false,"type":"float"},{"description":"字体，支持的字体参考：add_text","input":{},"name":"font","required":false,"type":"string"},{"description":"文字透明度（范围0.0-1.0），默认1.0","input":{},"name":"font_alpha","required":false,"type":"float"},{"description":"文本内容","input":{},"name":"text","required":true,"type":"string"},{"description":"视频宽度","input":{},"name":"width","required":false,"type":"float"},{"description":"文字宽度限制，-1表示不限制，1表示1个视频宽度","input":{},"name":"fixed_width","required":false,"type":"float"},{"description":"背景样式（0 或者 2）","input":{},"name":"background_style","required":false,"type":"float"},{"description":"气泡效果ID","input":{},"name":"bubble_effect_id","required":false,"type":"string"},{"description":"文本开始时间（秒）","input":{},"name":"start","required":true,"type":"float"}],"outputs":[{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_id","required":false,"type":"string"},{"input":{},"name":"draft_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"添加字幕到轨道","title":"add_text","mainColor":"#CA61FF"}}},{"id":"140023","type":"4","meta":{"position":{"x":975.786276203306,"y":435.700198595411}},"data":{"nodeMeta":{"description":"添加视频到轨道","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:add_video","title":"视频"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528620712060289070","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"add_video","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"batch":{"batchEnable":true,"batchSize":100,"concurrentSize":10,"inputLists":[{"name":"video","input":{"type":"list","schema":{"type":"string"},"value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"video"},"rawMeta":{"type":99}}}},{"name":"timelines","input":{"type":"list","schema":{"type":"object","schema":[{"type":"float","name":"start","required":false},{"type":"float","name":"duration","required":false},{"type":"float","name":"end","required":false}]},"value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"timelines"},"rawMeta":{"type":103}}}}]},"inputParameters":[{"name":"draft_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"190910","name":"output.draft_id"},"rawMeta":{"type":1}}}},{"name":"video_url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"140023","name":"video"},"rawMeta":{"type":1}}}},{"name":"end","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"140023","name":"timelines.duration"},"rawMeta":{"type":4}}}},{"name":"start","input":{"type":"float","value":{"type":"literal","content":0,"rawMeta":{"type":4}}}},{"name":"target_start","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"140023","name":"timelines.start"},"rawMeta":{"type":4}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"list","name":"outputList","schema":{"type":"object","schema":[{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"draft_id","required":false},{"type":"string","name":"draft_url","required":false}],"required":false},{"type":"boolean","name":"success","required":false}]}}]},"_temp":{"bounds":{"x":795.786276203306,"y":435.700198595411,"width":360,"height":112},"externalData":{"icon":"https://lf26-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=fuG8jPfKnJtJtonODV6a2vel%2FQ0%3D","apiName":"add_video","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"蒙版类型（\"线性\"、\"镜面\"、\"圆形\"、\"矩形\"、\"爱心\"、\"星形\"）","input":{},"name":"mask_type","required":false,"type":"string"},{"description":"视频播放速度（1.0为原速），默认1.0","input":{},"name":"speed","required":false,"type":"float"},{"description":"草稿ID","input":{},"name":"draft_id","required":true,"type":"string"},{"description":"视频高度（像素），默认1920","input":{},"name":"height","required":false,"type":"float"},{"description":"蒙版中心点X坐标（像素单位），默认素材中心","input":{},"name":"mask_center_x","required":false,"type":"float"},{"description":"是否反转蒙版，默认false","input":{},"name":"mask_invert","required":false,"type":"boolean"},{"description":"蒙版顺时针旋转角度（度），默认0","input":{},"name":"mask_rotation","required":false,"type":"float"},{"description":"蒙版主要尺寸（占素材高度的比例），默认0.5","input":{},"name":"mask_size","required":false,"type":"float"},{"description":"Y轴平移量（1表示一个画幅高度，正数向下移动），默认0","input":{},"name":"transform_y","required":false,"type":"float"},{"description":"视频资源的URL地址","input":{},"name":"video_url","required":true,"type":"string"},{"description":"蒙版中心点Y坐标（像素单位），默认素材中心","input":{},"name":"mask_center_y","required":false,"type":"float"},{"description":"蒙版羽化值（0~100），默认0","input":{},"name":"mask_feather","required":false,"type":"float"},{"description":"矩形蒙版宽度（仅矩形蒙版有效）","input":{},"name":"mask_rect_width","required":false,"type":"float"},{"description":"X轴缩放比例，默认1","input":{},"name":"scale_x","required":false,"type":"float"},{"description":"Y轴缩放比例，默认1","input":{},"name":"scale_y","required":false,"type":"float"},{"description":"目标开始时间（秒），默认0","input":{},"name":"target_start","required":false,"type":"float"},{"description":"相对索引（用于确定视频在轨道中的顺序，越大越靠前），默认0","input":{},"name":"relative_index","required":false,"type":"float"},{"description":"轨道名称，默认\"main\"","input":{},"name":"track_name","required":false,"type":"string"},{"description":"X轴平移量（1表示一个画幅宽度，正数向右移动），默认0","input":{},"name":"transform_x","required":false,"type":"float"},{"description":"转场名称","input":{},"name":"transition","required":false,"type":"string"},{"description":"视频结束时间（秒）","input":{},"name":"end","required":false,"type":"float"},{"description":"矩形蒙版圆角值（0~100），默认0","input":{},"name":"mask_round_corner","required":false,"type":"float"},{"description":"视频开始时间（秒），默认0","input":{},"name":"start","required":false,"type":"float"},{"description":"转场持续时间，默认0.5","input":{},"name":"transition_duration","required":false,"type":"float"},{"description":"视频宽度（像素），默认1080","input":{},"name":"width","required":false,"type":"float"}],"outputs":[{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_url","required":false,"type":"string"},{"input":{},"name":"draft_id","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"},{"input":{},"name":"error","required":false,"type":"string"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"添加视频到轨道","title":"add_video","mainColor":"#CA61FF"}}},{"id":"136245","type":"4","meta":{"position":{"x":1464.3076855206757,"y":-15.398255513134984}},"data":{"nodeMeta":{"description":"添加字幕到轨道","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:add_text","title":"标题"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528614856367554569","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"add_text","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"draft_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"190910","name":"output.draft_id"},"rawMeta":{"type":1}}}},{"name":"end","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"all_timelines.end"},"rawMeta":{"type":4}}}},{"name":"start","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"all_timelines.start"},"rawMeta":{"type":4}}}},{"name":"text","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"title"},"rawMeta":{"type":1}}}},{"name":"background_color","input":{"type":"string","value":{"type":"literal","content":"#00ff00","rawMeta":{"type":1}}}},{"name":"fixed_width","input":{"type":"float","value":{"type":"literal","content":0.6,"rawMeta":{"type":4}}}},{"name":"font_color","input":{"type":"string","value":{"type":"literal","content":"#ffffff","rawMeta":{"type":1}}}},{"name":"font_size","input":{"type":"float","value":{"type":"literal","content":20,"rawMeta":{"type":4}}}},{"name":"track_name","input":{"type":"string","value":{"type":"literal","content":"title","rawMeta":{"type":1}}}},{"name":"transform_x","input":{"type":"float","value":{"type":"literal","content":0.5,"rawMeta":{"type":4}}}},{"name":"transform_y","input":{"type":"float","value":{"type":"literal","content":0.5,"rawMeta":{"type":4}}}},{"name":"vertical","input":{"type":"boolean","value":{"type":"literal","content":true,"rawMeta":{"type":3}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"draft_url","required":false},{"type":"string","name":"draft_id","required":false}],"required":false},{"type":"boolean","name":"success","required":false}]},"_temp":{"bounds":{"x":1284.3076855206757,"y":-15.398255513134984,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=FCH8lWpo4iMoBLKc2lYGuNV%2BI18%3D","apiName":"add_text","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"描边颜色（HEX格式）","input":{},"name":"border_color","required":false,"type":"string"},{"description":"轨道名称","input":{},"name":"track_name","required":false,"type":"string"},{"description":"视频高度","input":{},"name":"height","required":false,"type":"float"},{"description":"入场动画持续时间（秒）","input":{},"name":"intro_duration","required":false,"type":"float"},{"description":"Y轴位置（以视频中心为原点，对应视频高度）","input":{},"name":"transform_y","required":false,"type":"float"},{"description":"是否竖排显示，默认否","input":{},"name":"vertical","required":false,"type":"boolean"},{"description":"背景颜色（HEX格式）","input":{},"name":"background_color","required":false,"type":"string"},{"description":"描边透明度（范围0.0-1.0），默认1.0","input":{},"name":"border_alpha","required":false,"type":"float"},{"description":"字体大小","input":{},"name":"font_size","required":false,"type":"float"},{"description":"支持的出场动画：add_text","input":{},"name":"outro_animation","required":false,"type":"string"},{"description":"花字效果ID","input":{},"name":"effect_effect_id","required":false,"type":"string"},{"description":"支持的入场动画：add_text","input":{},"name":"intro_animation","required":false,"type":"string"},{"description":"出场动画持续时间（秒）","input":{},"name":"outro_duration","required":false,"type":"float"},{"description":"气泡资源ID","input":{},"name":"bubble_resource_id","required":false,"type":"string"},{"description":"草稿ID","input":{},"name":"draft_id","required":true,"type":"string"},{"description":"字体颜色（HEX格式，如：#FF0000）","input":{},"name":"font_color","required":false,"type":"string"},{"description":"多样式文本配置，数组内为样式区间对象","input":{},"name":"text_styles","required":false,"schema":{"assistType":0,"type":"string"},"type":"list"},{"description":"X轴位置（以视频中心为原点，对应视频宽度）","input":{},"name":"transform_x","required":false,"type":"float"},{"description":"文本结束时间（秒）","input":{},"name":"end","required":true,"type":"float"},{"description":"背景透明度（范围0.0-1.0）","input":{},"name":"background_alpha","required":false,"type":"float"},{"description":"描边宽度","input":{},"name":"border_width","required":false,"type":"float"},{"description":"文字高度限制，-1表示不限制，1表示1个视频高度","input":{},"name":"fixed_height","required":false,"type":"float"},{"description":"字体，支持的字体参考：add_text","input":{},"name":"font","required":false,"type":"string"},{"description":"文字透明度（范围0.0-1.0），默认1.0","input":{},"name":"font_alpha","required":false,"type":"float"},{"description":"文本内容","input":{},"name":"text","required":true,"type":"string"},{"description":"视频宽度","input":{},"name":"width","required":false,"type":"float"},{"description":"文字宽度限制，-1表示不限制，1表示1个视频宽度","input":{},"name":"fixed_width","required":false,"type":"float"},{"description":"背景样式（0 或者 2）","input":{},"name":"background_style","required":false,"type":"float"},{"description":"气泡效果ID","input":{},"name":"bubble_effect_id","required":false,"type":"string"},{"description":"文本开始时间（秒）","input":{},"name":"start","required":true,"type":"float"}],"outputs":[{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_id","required":false,"type":"string"},{"input":{},"name":"draft_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"添加字幕到轨道","title":"add_text","mainColor":"#CA61FF"}}},{"id":"120532","type":"4","meta":{"position":{"x":967.0327617849123,"y":-212.37476464717616}},"data":{"nodeMeta":{"description":"添加音频到轨道","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:add_audio","title":"背景音乐"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528607546471415818","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"add_audio","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"audio_url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"bj_audio"},"rawMeta":{"type":1}}}},{"name":"draft_id","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"190910","name":"output.draft_id"},"rawMeta":{"type":1}}}},{"name":"end","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"all_timelines.end"},"rawMeta":{"type":4}}}},{"name":"target_start","input":{"type":"float","value":{"type":"ref","content":{"source":"block-output","blockID":"164157","name":"all_timelines.start"},"rawMeta":{"type":4}}}},{"name":"track_name","input":{"type":"string","value":{"type":"literal","content":"bg","rawMeta":{"type":1}}}},{"name":"volume","input":{"type":"float","value":{"type":"literal","content":0.1,"rawMeta":{"type":4}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"error","required":false},{"type":"object","name":"output","schema":[{"type":"string","name":"draft_id","required":false},{"type":"string","name":"draft_url","required":false}],"required":false},{"type":"boolean","name":"success","required":false}]},"_temp":{"bounds":{"x":787.0327617849123,"y":-212.37476464717616,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=FCH8lWpo4iMoBLKc2lYGuNV%2BI18%3D","apiName":"add_audio","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"音量大小，默认1.0","input":{},"name":"volume","required":false,"type":"float"},{"description":"音频资源的URL地址","input":{},"name":"audio_url","required":true,"type":"string"},{"description":"草稿ID（用于指定特定草稿）","input":{},"name":"draft_id","required":true,"type":"string"},{"description":"音效类型（目前支持的音效：add_audio）","input":{},"name":"effect_type","required":false,"type":"string"},{"description":"音频结束时间（秒，默认不限制）","input":{},"name":"end","required":false,"type":"float"},{"description":"视频高度（像素）默认1920","input":{},"name":"height","required":false,"type":"float"},{"description":"音频播放速度（1.0为原速）默认1.0","input":{},"name":"speed","required":false,"type":"float"},{"description":"轨道名称（用于多音频混合）默认audio_main","input":{},"name":"track_name","required":false,"type":"string"},{"description":"音效参数（参数列表，视具体音效而定，例如[50.35]）","input":{},"name":"effect_params","required":false,"schema":{"assistType":0,"type":"string"},"type":"list"},{"description":"音频开始时间（秒）默认0","input":{},"name":"start","required":false,"type":"float"},{"description":"目标开始时间（秒），默认0","input":{},"name":"target_start","required":false,"type":"float"},{"description":"视频宽度（像素）默认1080","input":{},"name":"width","required":false,"type":"float"}],"outputs":[{"input":{},"name":"error","required":false,"type":"string"},{"input":{},"name":"output","required":false,"schema":[{"input":{},"name":"draft_id","required":false,"type":"string"},{"input":{},"name":"draft_url","required":false,"type":"string"}],"type":"object"},{"input":{},"name":"success","required":false,"type":"boolean"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"添加音频到轨道","title":"add_audio","mainColor":"#CA61FF"}}},{"id":"164157","type":"4","meta":{"position":{"x":526.2422829880047,"y":-23.93468617900044}},"data":{"nodeMeta":{"description":"从音频列表中获取时间线列表","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"剪映助手_视频剪辑小助手:timelines","title":"时间轴"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7528986535417348146","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"timelines","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7528374280598421504","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"剪映助手_视频剪辑小助手","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"0","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"links","input":{"type":"list","schema":{"type":"string"},"value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"audio"},"rawMeta":{"type":99}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"list","name":"all_timelines","schema":{"type":"object","schema":[{"type":"float","name":"end","required":false},{"type":"float","name":"start","required":false},{"type":"float","name":"duration","required":false}]},"required":false},{"type":"list","name":"timelines","schema":{"type":"object","schema":[{"type":"float","name":"start","required":false},{"type":"float","name":"duration","required":false},{"type":"float","name":"end","required":false}]},"required":false}]},"_temp":{"bounds":{"x":346.2422829880047,"y":-23.93468617900044,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/4308322827904212_1752916915602176986_HWVVq2BXn7.png?lk3s=cd508e2b&x-expires=1755744782&x-signature=FCH8lWpo4iMoBLKc2lYGuNV%2BI18%3D","apiName":"timelines","pluginID":"7528374280598421504","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7506483678047174696","inputs":[{"description":"输入音频数组，可以是单个，或者多个","input":{},"name":"links","required":true,"schema":{"assistType":0,"type":"string"},"type":"list"}],"outputs":[{"input":{},"name":"all_timelines","required":false,"schema":{"schema":[{"input":{},"name":"end","required":false,"type":"float"},{"input":{},"name":"start","required":false,"type":"float"},{"input":{},"name":"duration","required":false,"type":"float"}],"type":"object"},"type":"list"},{"input":{},"name":"timelines","required":false,"schema":{"schema":[{"input":{},"name":"duration","required":false,"type":"float"},{"input":{},"name":"end","required":false,"type":"float"},{"input":{},"name":"start","required":false,"type":"float"}],"type":"object"},"type":"list"}],"updateTime":1753005987,"channel_id":1,"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"从音频列表中获取时间线列表","title":"timelines","mainColor":"#CA61FF"}}}],"edges":[{"sourceNodeID":"164157","targetNodeID":"190910"},{"sourceNodeID":"190910","targetNodeID":"120532"},{"sourceNodeID":"120532","targetNodeID":"108688"},{"sourceNodeID":"108688","targetNodeID":"198094"},{"sourceNodeID":"198094","targetNodeID":"140023"},{"sourceNodeID":"136245","targetNodeID":"180359"},{"sourceNodeID":"180359","targetNodeID":"137816"},{"sourceNodeID":"140023","targetNodeID":"144495"},{"sourceNodeID":"144495","targetNodeID":"136245"}]},"bounds":{"x":346.2422829880047,"y":-216.2689380464987,"width":1298.065402532671,"height":763.9691366419097}}
